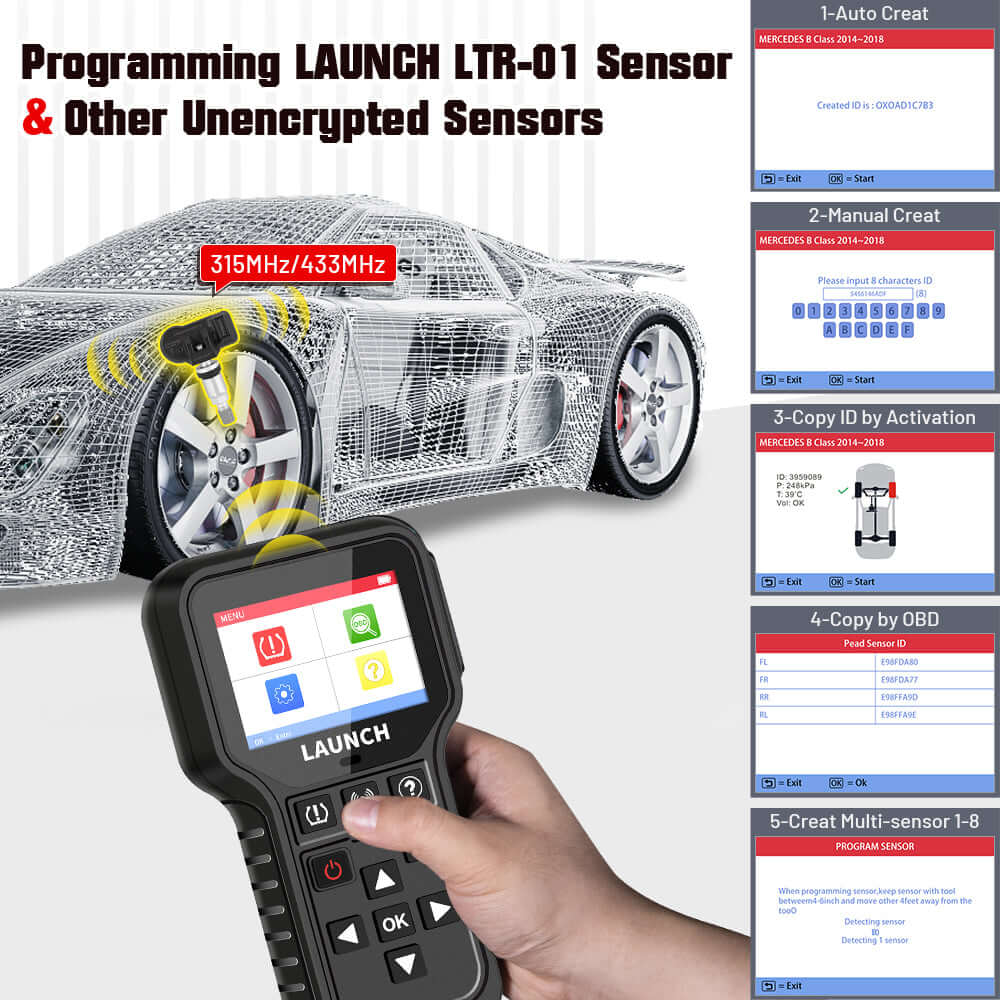

Auto Create: This function is designed to program the LAUNCH-sensor by applying random IDs created according to the test vehicle when it is unable to obtain the original sensor ID. Select the wheel which needs to be programmed on the tool, places a LAUNCH-sensor close to the TPMS antenna of the tool, and select CREATE SENSOR to create a new random sensor ID.
Manual Create: This function allows users to manually enter sensor ID. Users can enter the random ID or the original sensor ID, if it is available.

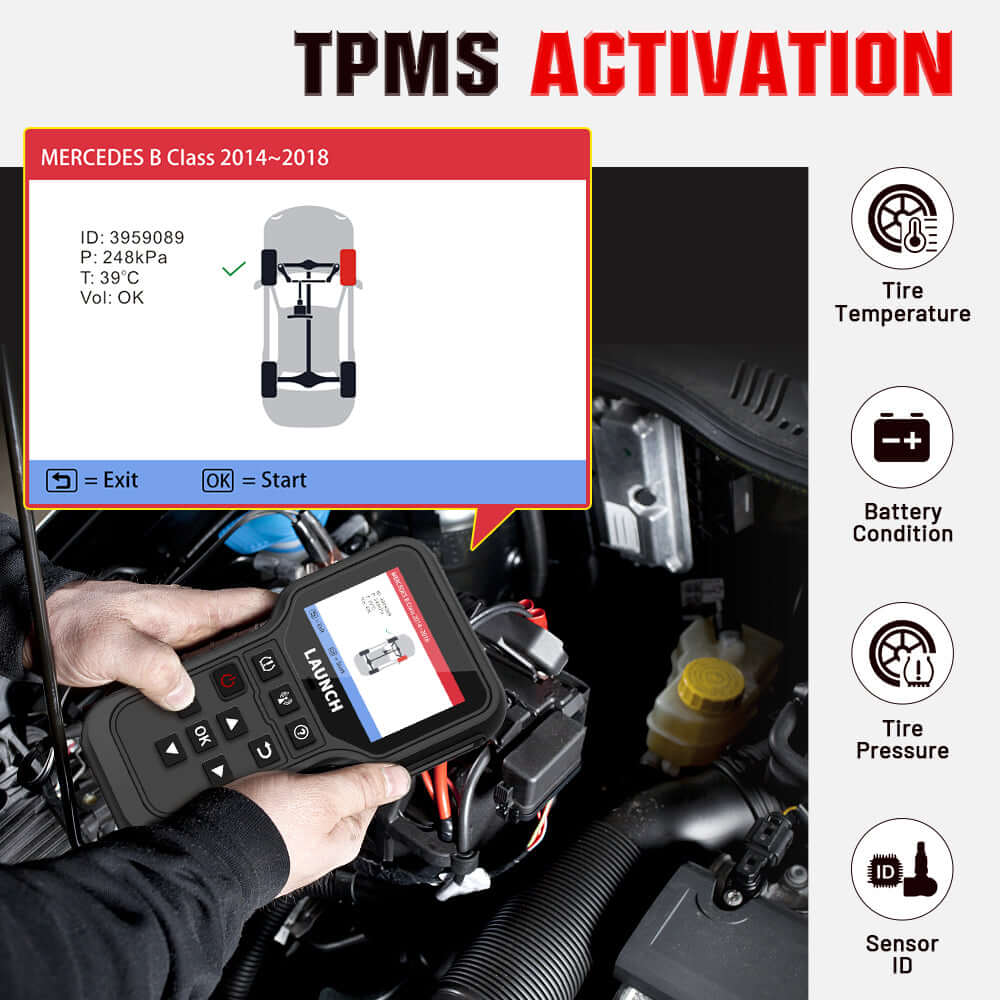

Copy ID by activation: It can get tire pressure sensor ID when the tire sensor is working normally, you can write in the retrieved original sensor data to the LAUNCH-sensor. It is used after the original sensor is triggered.
Copy by OBD: Firstly, you need to perform a Read ID from Vehicle in the Relearn function, which reads the sensor ID from the vehicle ECU. It can be used if the sensor is damaged and the original ID is saved in the vehicle system. You can use it to get the old sensor ID stored in ECU, and write it directly into your LAUNCH RF-sensor.
Create Multi-sensor 1-8: This function allows users to program multiple sensors simultaneously. Up to 8 sensors can be programmed at the same time.
Specification:
Screen: 3.5” LCD display with a resolution of 320*480 pixels
Input voltage: 9~18V via OBD diagnostic port / 5V via USB cable
Operating temperature: 32°F~122°F / 0°C~50°C
Storage temperature: -4°F~158°F / -20°C ~70°C @ RH60%
Battery: 3100mAh
Memory: 16GB
Size: 200*115*35 mm
Weight: <450g

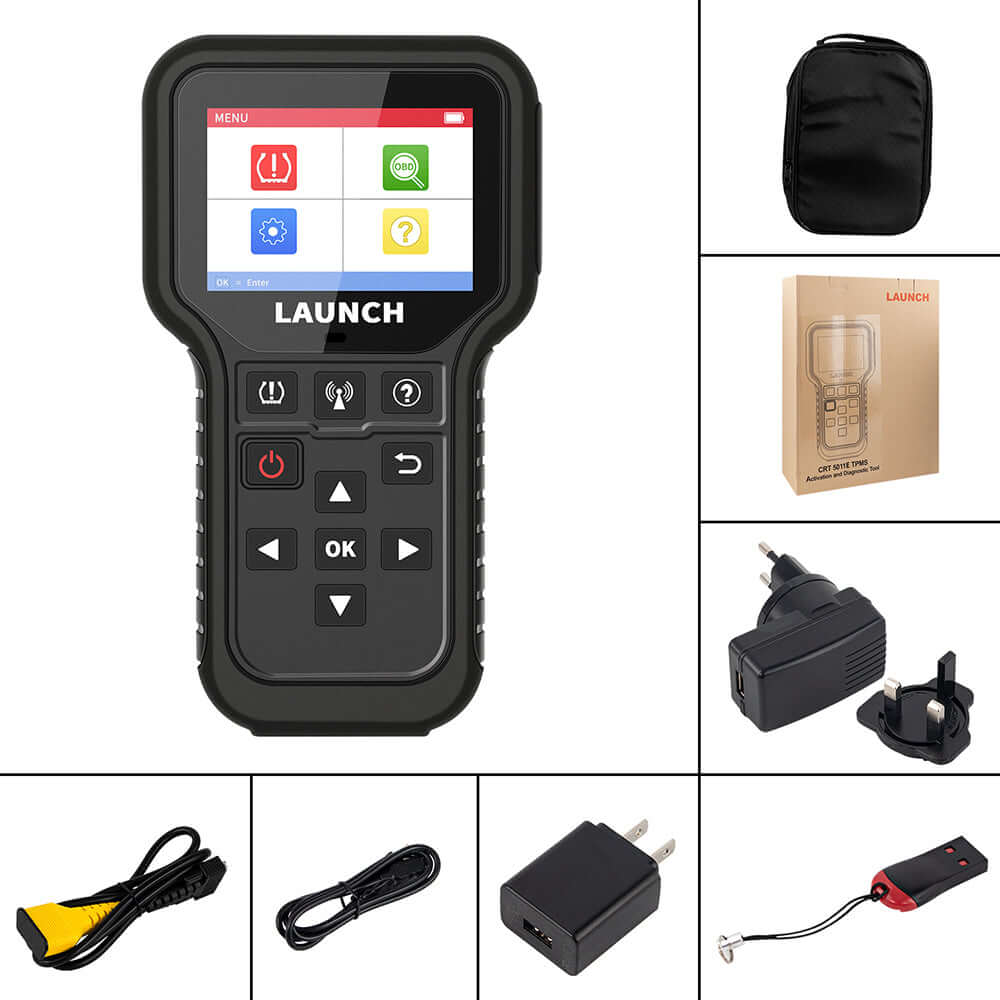

1 * Nylon Bag
1 * USB Cable
1 *Card Reader
1 *OBD2 Cable
1 * US Charging Head
1 * EU Charging Head
1 * UK Charging Head
-
bought the CRT5011E and its not working error Scanner does not read ID number???
Hi, please send me a video of your diagnostic steps!
-
Will this work on a 2016 ram dulley with 434 MHz sensor's
Yes, it can work on your car!
-
Will this work with the 2021 Kia Telluride's TPMS system?
Hello, this product is not suitable for your model!
-
Will it work with a Jeep Compass 2014?
Hello, our engineer replied, CRT5011E can be used in your car!
-
Will this work for my 2018 Nissan pathfinder?
Hello, our engineer said LAUNCH CRT5011E can work on your car!
-
Hi will this work on 2021 Honda pilot?
Hello, this machine can only be used for GM vehicles!
