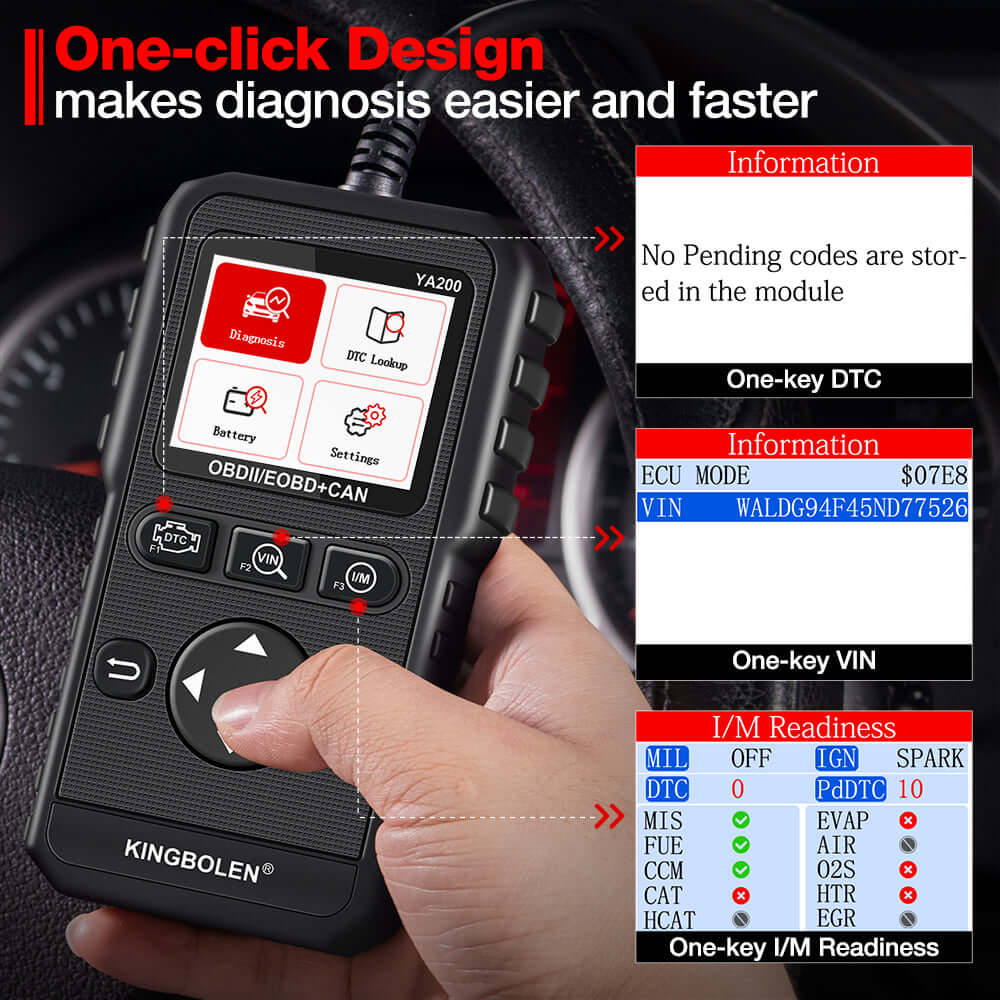

Hot Keys:

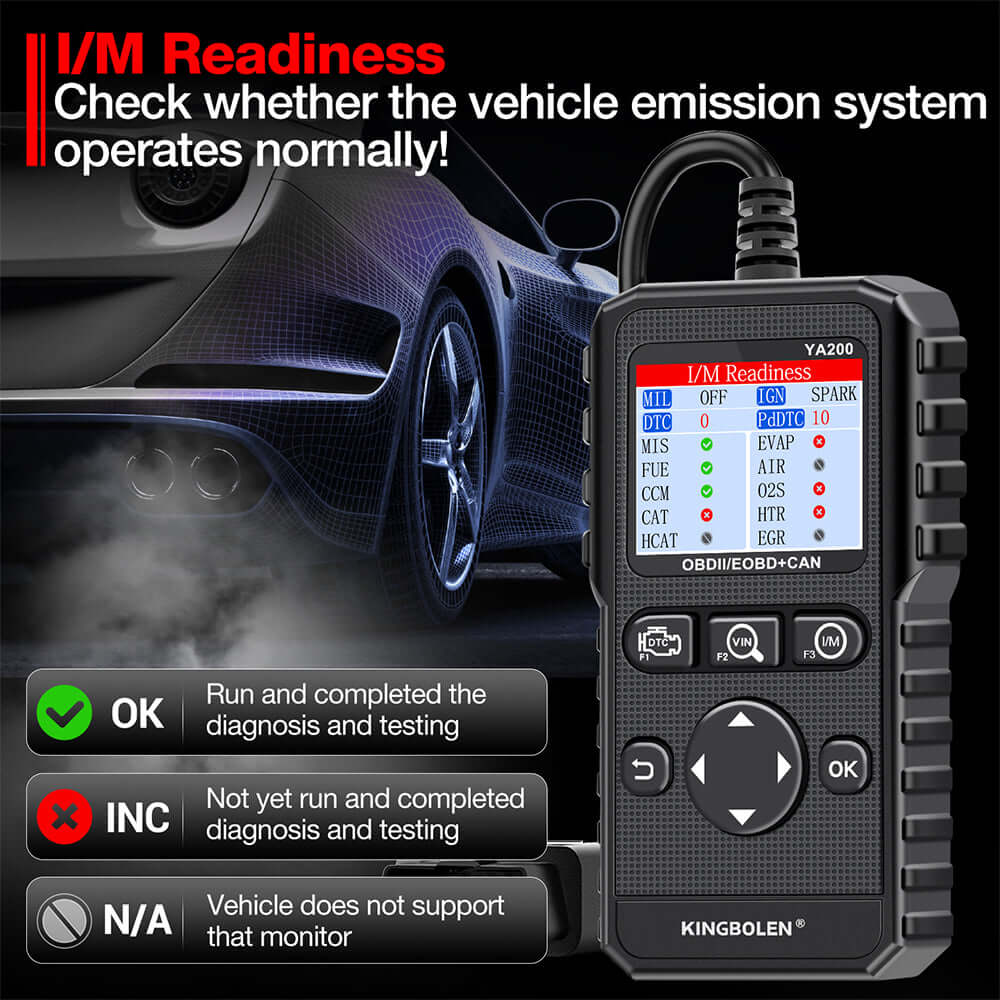

One-click I/M Readiness: Quick checks emission readiness status and drive cycle status
One-click DTC: Looks up definitions of Pending Codes stored in the scan tool and shows the possible causes of the DTC(Not every DTC with possible causes reason).
One-click VIN: Displays the vehicle's identification number.
The KINGBOLEN YA200 Code Reader meets the following protocols:
① SAE J1850 PWM (41.6 Kbaud)
② SAE J1850 VPW (10.4 Kbaud)
③ ISO 9141-2 (5 baud init, 10.4 Kbaud)
④ ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
⑤ ISO14230-4 KWP (fast init, 10.4 Kbaud)
⑥ ISO15765-4 CAN (11bit ID, 500 Kbaud)
⑦ ISO15765-4 CAN (29bit ID, 500 Kbaud)
⑧ ISO15765-4 CAN (11bit ID, 250 Kbaud)
⑨ ISO15765-4 CAN (29bit ID, 250 Kbaud)
NOTE: Not for FIAT models.
Specifications：
- Screen Size: 2.4 inches
- Display: 320x240 pixel display with TFT color screen.
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)

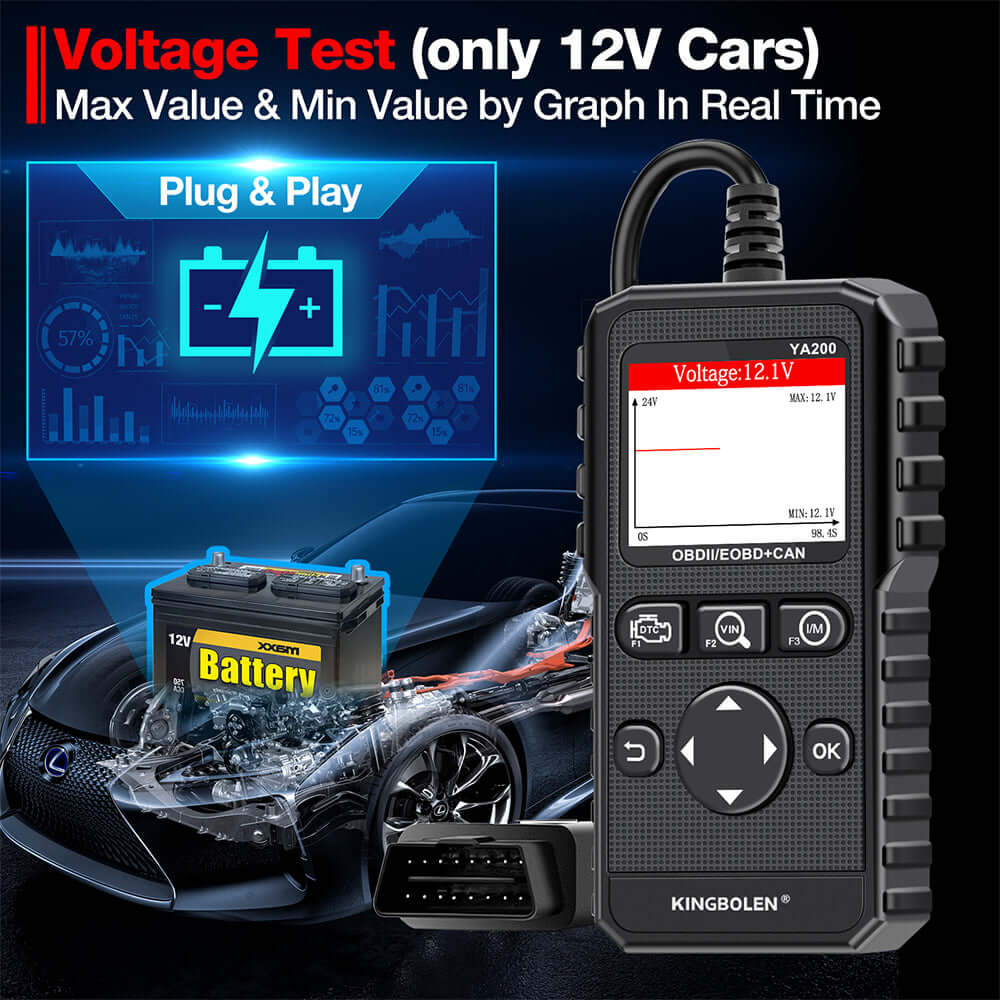

- External Power: 9.0V to 16.0V power provided via vehicle battery
- Product Size: 137 × 79 × 22 mm (5.4"×3.1"×0.9")
1 * USB Cable
1 * User Manual
-
acabo de adquirir un YA200, mi pregunta: viene actualizado o es necesario actualizar el firmware?
Hola, necesitas actualizar el software manualmente, gracias.
-
Guten Tag bei meinem Gerät steht immer upgrading und es geht nichts was muss ich machen ?
Hallo.
Wenn Sie das Gerät an Ihren Computer anschließen, zeigt es immer an, dass es gerade aktualisiert wird. -
come si aggiona il dispositivo c'e un app da scaricare quando lo colleghi al pc ?
Ciao, per aggiornare il dispositivo, devi inviarci il numero di serie e ti invieremo il pacchetto di aggiornamento. La serie YA non ha bisogno di essere aggiornata se non ci sono problemi.
-
Buena tarde ,, no funciona con Ford Ecosport 2004 ,no aparece Ford en los modelos a seleccionar ,dice "el modo seleccionado no es compatible"
Hola, hay diez modos para el diagnóstico OBD2, algunos de ellos pueden no ser compatibles con este modelo, puede intentar probar otros modos.
-
Hi It does not work with renault fluence 2014! " The selected mode is not supported" Please help!!!
Hello. Please provide video or photo and your device's serial number, thank you !
-
Ciao Fiat 500 X del 2016, non viene riconosciuta e mi diche che potrebbe non essere un OBD2 . Sia da macchina spenta, quadro acceso ed anche macchina accesa.
Ciao, controlla con un'altra auto OBD2 per vedere se il dispositivo ha ancora questo messaggio
-
still no update for the ya200?
Hello.
What's the matter with your device? -
Hola Buenas Noches, he conectado a mi auto Haval Jolion y no detecta los codigos solo funciona el voltage de la bateria, debo actualizar
Hola, ¿de qué año es tu modelo?
-
Just bought YA-200 . First time plugged in. It said "Updating" for 24 hours. How can we make it work?
Hello, may I ask if you connected the USB data cable? If it is, it needs to be unplugged.
-
Hi, i bought YA200 but i have a problem withc my FIAT. I have communicate no avaible function. Do You have any upgrade for my YA200?
Hello, What is year of your car?
-
При первом подключении пишет Upgrading и не запускается
Не подключайте USB-кабель для передачи данных и не подключайте компьютер
-
Hola. He adquirido este producto para chequear mi coche y el problema viene cuando lo conecto a mi coche y le doy a diagnosticar pero no me permite acceder a varias funciones que se supone que este aparato tiene. Solo me aparece " Códigos almacenados" , no me aparece nada más.
Hola, qué funciones no aparecen?
-
Il mio scanner ya 200 non funziona su fiat 500 2011 provato anche su altra auto e non funziona, non si potrebbe fare un aggiornamento?
Quale modello e anno hai inoltre testato? Devo giudicare se il prodotto è difettoso o non supporta la tua auto!
-
Recebi o Scanner YA200 mas ele não funciona no meu carro ( Fiat 500 ano 2009/2010 motor 1.4 16v modelo Lounge)
Have you tried using it on another car? If other cars don't work either, then the scanner is broken!
-
I received the YA200 code reader today 9/30/22 plugged it in to my Kia Soul Exclaim (2.0) it acts like it's scanning then says selected mode is not supported, or communication error. I did everything as the manual said.. am I missing something or what? I know my OBDII works because I had autozone pull my codes a month ago. The unit does work I tried it on my husband 03 subaru. Thanks for any help.
What year is your car, please? I'll give it to our R&D department to check it out.
-
This is concerning my Kingbolen YA200 scanner. I received this yesterday, tried it on my car and it turned on and did some scanning but a number of functions were not supported. I then got the upgrade files, uploaded them to the unit, and now I plug the unit into the obd and all I get is the red screen with the basic info and nothing else. Then I reloaded the files and the same thing. What is happening?????
Where did you get the upgrade files from? This scanner was only launched last month, and there is no upgrade file at all!
-
ya200 not working, just showing blank screen, does not display anything
Hi, can it start normally? If it cannot be turned on, it may not be connected to the car.
