LAUNCH® X431 PAD V All Systems Online Programming CAN-FD OBD Scanner

Save $800.00

Sale price$2,399.00 Regular price$3,199.00


✅The Flagship Vehicle Scanner: LAUNCH X431 PAD V is equipped with the new SmartBox 3.0 diagnostic box, which supports the diagnosis of passenger cars(12V), commercial vehicles(24V), new energy vehicles. Wide coverage, strong diagnostic functions, and accurate test data... (Truck diagnostic software needs to be purchased to use, we will provide you with a set of devices for testing trucks after you purchased!)
LAUNCH X431 PAD V  ECU Bi-Directional Online Programming Diagnostic Tool

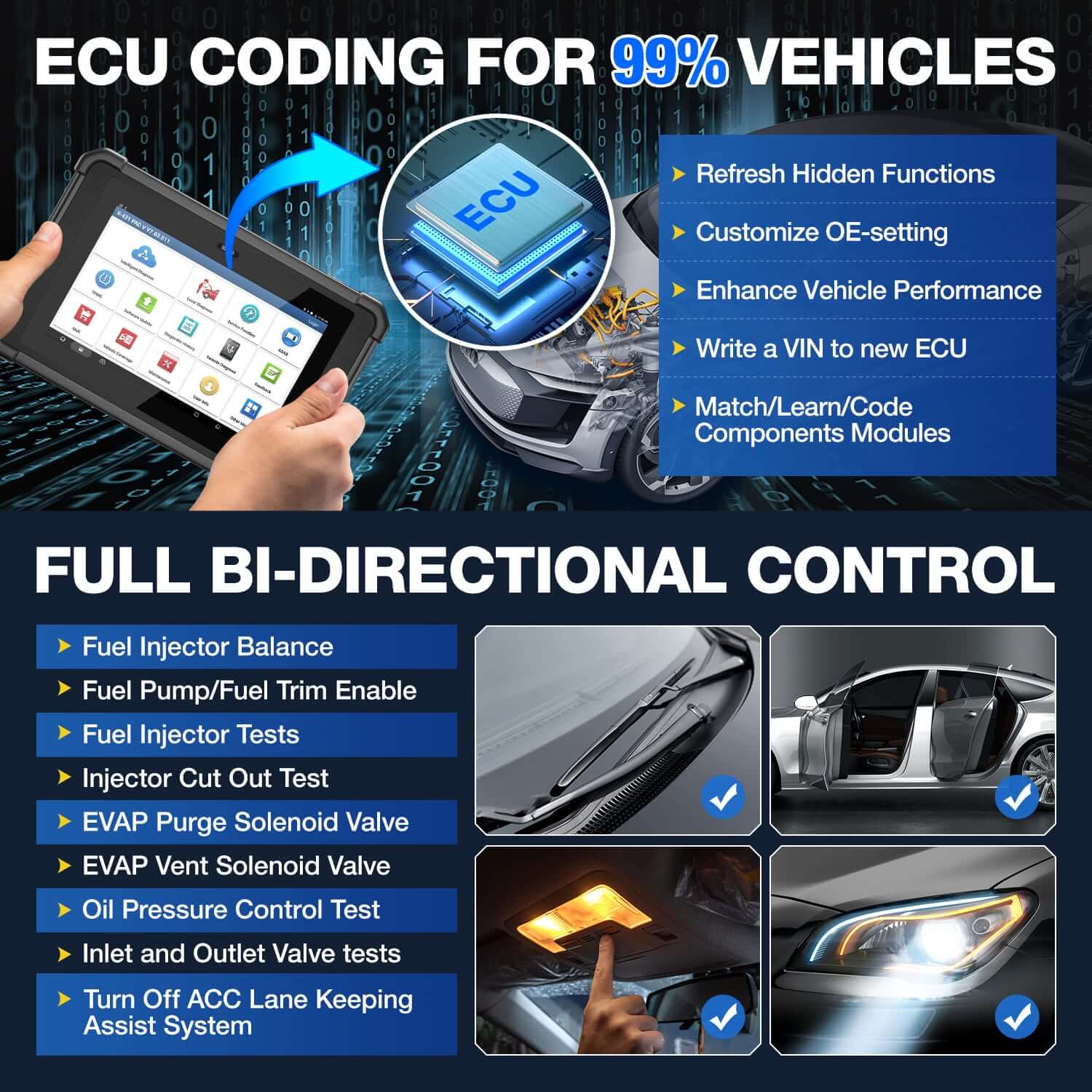

✅Online Programming+Active Testing+Key Program: Online programming can help you re-match, re-learn, and re-code a new ECU. Bidirectional control/active test to request information or command the actuator to perform specific tests. If you know the password, this startup scanner can add a new key to the car. Added topology module mapping, which is convenient to view the communication structure between modules and view real-time data in chart form.
LAUNCH X431 PAD V 12V 24V Car All Systems Online Programming Diagnostics Tool
✅33+Reset Service(26 free and 7 can be purchased):  SAS,BRAKE,GEAR,OIL,IMMO,INJEC,TPMS,BMS,BLEED,ETS,DPF,SUS,AFS,SUN,GEARBOX,EGR, Language Change,A/F,Coolant Bleed, NOx Sensor,Seats Calibration,Stop-Start,Transport Mode,Tyre Reset,Windows Calibration,AdBlue Rest,A/C relearn, Intelligent cruise control, Engine power balance monitoring, Motor angle calibration, High voltage battery diagnostic, GPF regeneration, Key program.(The last 7 functions need to be purchased to use, not buying these 7 paid functions will not affect the use)
LAUNCH X431 PAD V 12V 24V Car All Systems Online Programming Diagnostics Tool
✅High-quality Upgrade Hardware: 10.1-inch sun-visible screen, 2.4GHz/5GHz dual-band WIFI, 64GB storage (up to 128GB expansion), 8-core 2.0GHz CPU, 9360mAh supports QC3.0 fast charge, front 800W, rear 1300W camera, with charging dock station, resolution up to 1920x1200. X431 PAD V features a smart box, providing a faster dual Wi-Fi vehicle and 5G network communications.LAUNCH X431 PAD V  ECU Bi-Directional Online Programming Diagnostic Tool

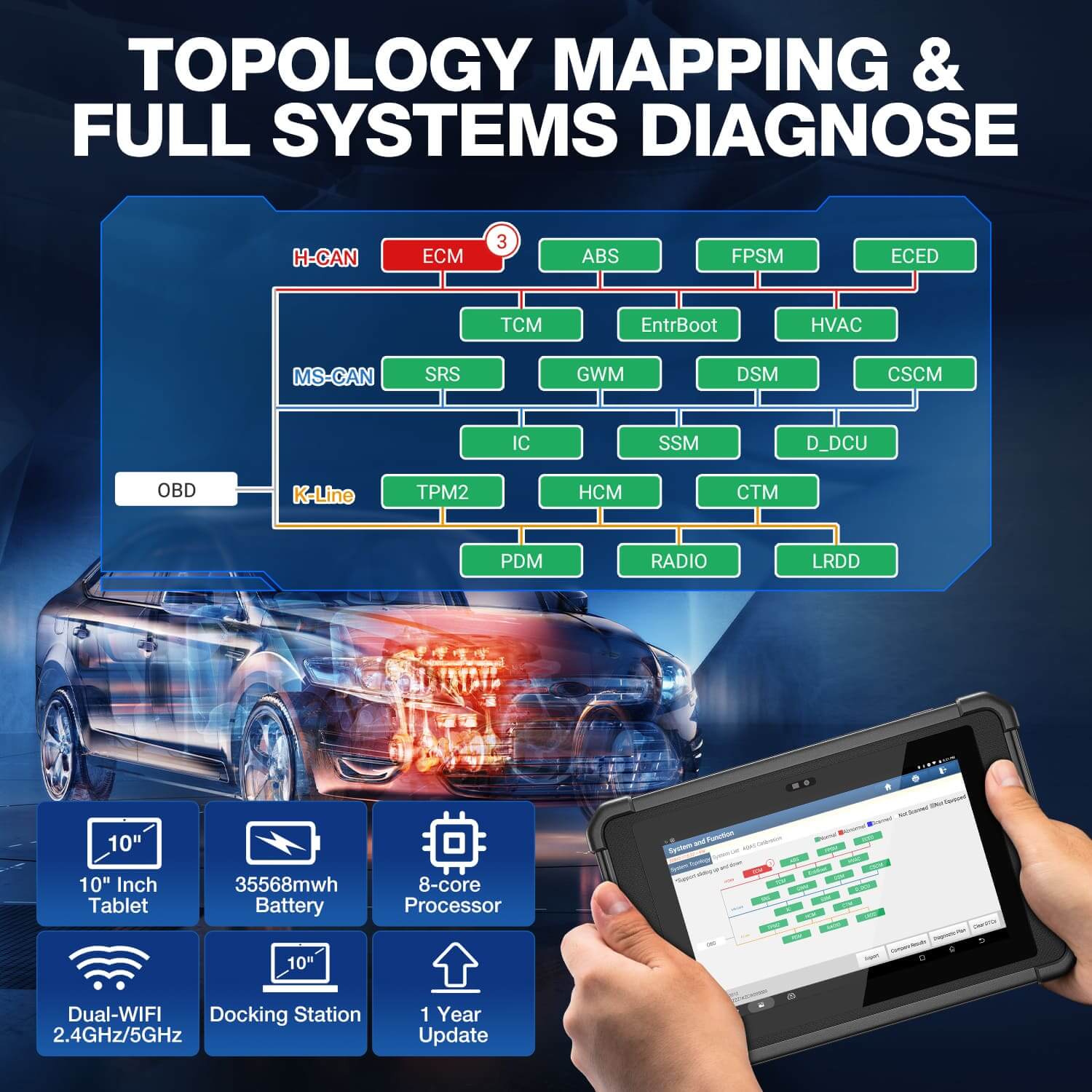

✅Remote Diagnosis+Email Sharing+QR Code Sharing+Topology Map: LAUNCH X431 Pad V Provide more portable help and functions, such as report printing and sharing, making it more convenient for you to use! Provide module network structure topology, allowing you to understand the car more clearly and simply! Up to 5 DTC display methods: topology, list, single click to enter the control unit, intelligent diagnosis details, vehicle diagnosis report.  (The topology is not suitable for all vehicles, please check the compatibility of VIN before placing an order!)LAUNCH X431 PAD V 12V 24V Car All Systems Online Programming Diagnostics Tool

✅Extended Module Function: Also, LAUNCH X431 PAD V supports ADAS, Wifi printer, Battery tester, TPMS tool, endoscope, oscilloscope, multimeter, battery equipment, anti-theft device programmer. (Not included in the package)LAUNCH X431 PAD V 12V 24V Car All Systems Online Programming Diagnostics Tool

What is the difference between LAUNCH X431 Diagun V, LAUNCH X431 Pro Mini 3.0, LAUNCH X431 V 4.0, LAUNCH X431 PRO3S+, and LAUNCH X431 Pad V?

1. Models supported by online programming: Mercedes-Benz, BMW, Volkswagen, Audi, Porsche, FAW Mazda, Changan Mazda, Nissan, Infiniti, Land Rover, Jaguar.(Please tell me your model before buying, we will check whether your model can be programmed!)
2. Currently, the United States, Spain, Mexico, Canada can only support Infiniti and Nissan programming functions. (Use VPN can support more models!)
🤔How about a warranty and update?
🥳1 Year Warranty + 1 Year Free Update

🤓What is the difference before LAUNCH X431 PAD V, LAUNCH X431 Throttle, and LAUNCH X431 TAB II?
✊The LAUNCH X431 PAD V, LAUNCH X431 Throttle, and LAUNCH X431 TAB II are the same in terms of product function and hardware.
The difference between them is that they look slightly different; the LAUNCH X431 Throttle is an American machine, the LAUNCH X431 TAB II is a European machine, and the LAUNCH X431 PAD V has no regional restrictions!LAUNCH X431 PAD V All Systems Online Programming CAN-FD OBD Scanner

Product Advantages:
1. The host and the diagnostic connector adopt 5G Wi-Fi communication, which is far superior to Bluetooth in terms of transmission rate, diagnostic distance, and anti-interference.
2. Supports automatic vehicle identification through VIN, quick access to the vehicle system, and historical diagnosis record query.
3. Support J2534/RP1210/D-PDU diagnostic standards, and can be used alone with part of the original diagnostic software.

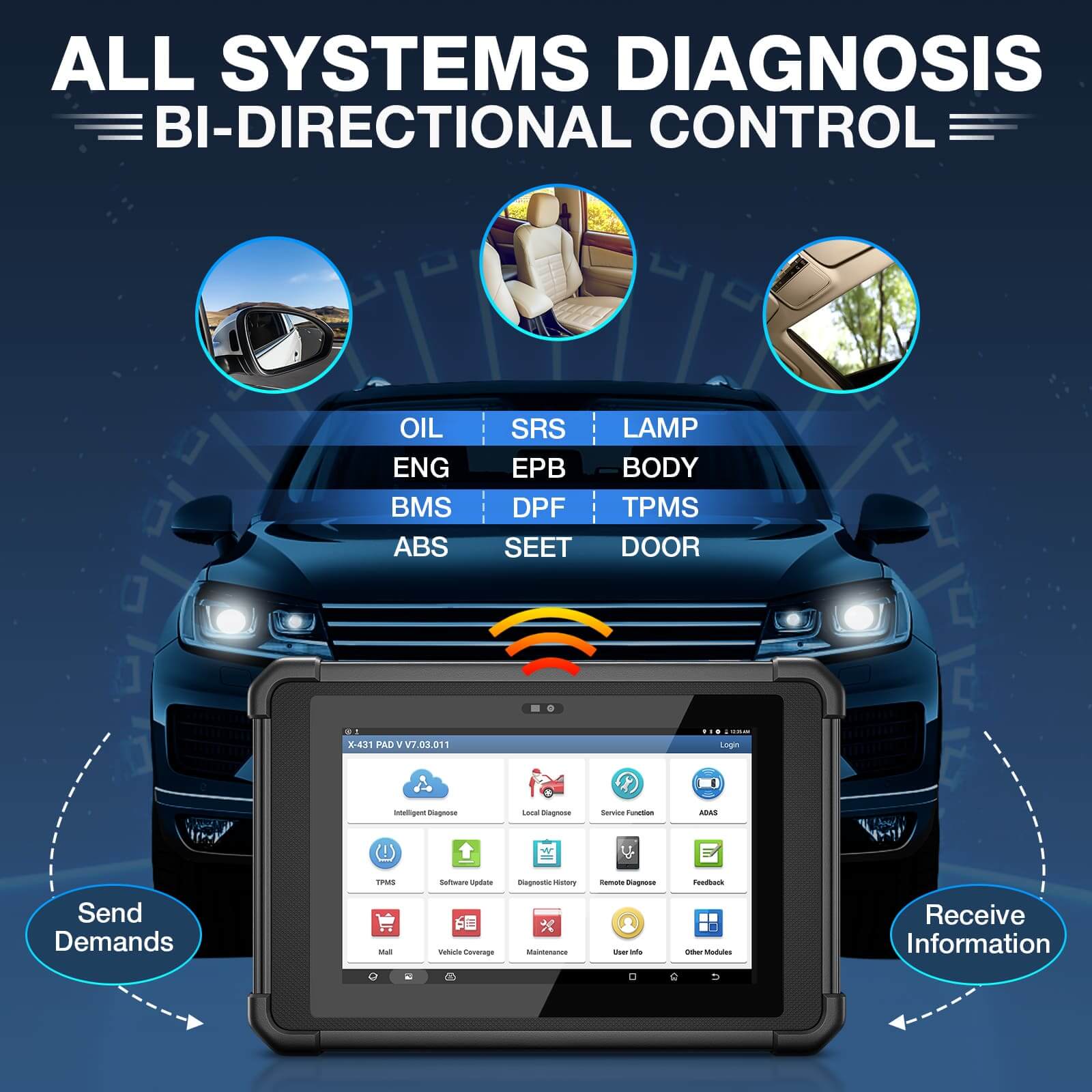

4. Support full-system, full-OBDII functions, Deep Diagnosis Your Vehicles, access to ALL vehicle systems and subsystems, to perform a comprehensive scanning on ECUs.
5. The protection grade is IP65, which is more waterproof and resistant to fall.
6. The four corners of the product are equipped with soft rubber protection to effectively prevent a collision.
7. The damping shaft can be adjusted by 180 degrees and supports three modes: lifting, supporting and normal.
8. Rich interfaces, USB Type C (charging and file transfer), USB Type A (module expansion interface), TF slot (extended TF card slot), SIM slot (SIM card slot)

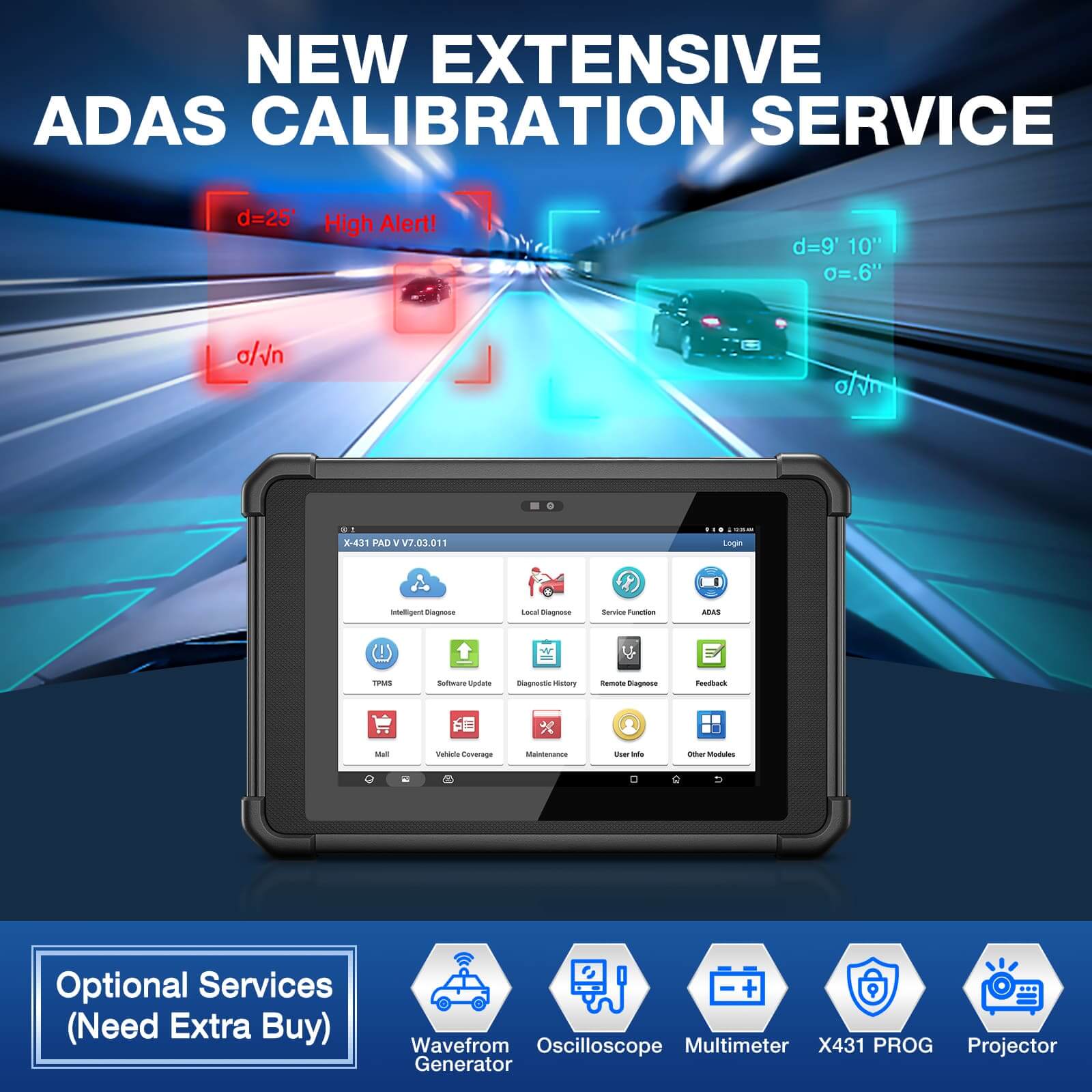

9. It supports ADAS system calibration and needs to be used with X-431 ADAS PRO products.
10. Web-based remote diagnosis can realize real-time communication between mobile phones or computers and equipment to complete vehicle remote diagnosis, and the network broadband and system resource occupancy rate is low.
11. Support one-key upgrade of the operating system, client, model software and firmware.
12. Support 24 languages: English, German, Italian, French, Polish, Dutch, Spanish, Portuguese, Hungarian, Greek, Swedish, Finnish, Danish, Czech, Persian, Romanian Text, Serbian, Turkish, Japanese, Korean, Arabic, Russian, Chinese (S&T), Thai.

Operating system: Android 7.1
CPU: Qualcomm MSM8953 2.0GHz 8-core
Memory: 4GB
Storage: 64GB (up to 128GB expansion)
Display screen: 10.1 inches, fully fit, sunlight-readable screen
Resolution: 1920x1200
Touch screen: IPD touch screen
Camera: the first 8 million pixels, the rear 13 million pixels
Wi-Fi: Support 2.4GHz&/5GHz dual-frequency x2
Working temperature: 0℃~50℃
Size: 320mm*211mm*46mm

SmartBox Diagnostic Connector Parameters:
CPU: Dual-processor Cortex-A7+Cortex-M7
Operating System: Linux
Working voltage: DC 9V ~ 36V
Memory: 256M
Storage: 8GB
USB: Type B x 1
Wi-Fi: 2.4GHz&5GHz dual frequency
Working temperature: 0℃ ~ 50℃

Size: 200mm*75mm*40mm

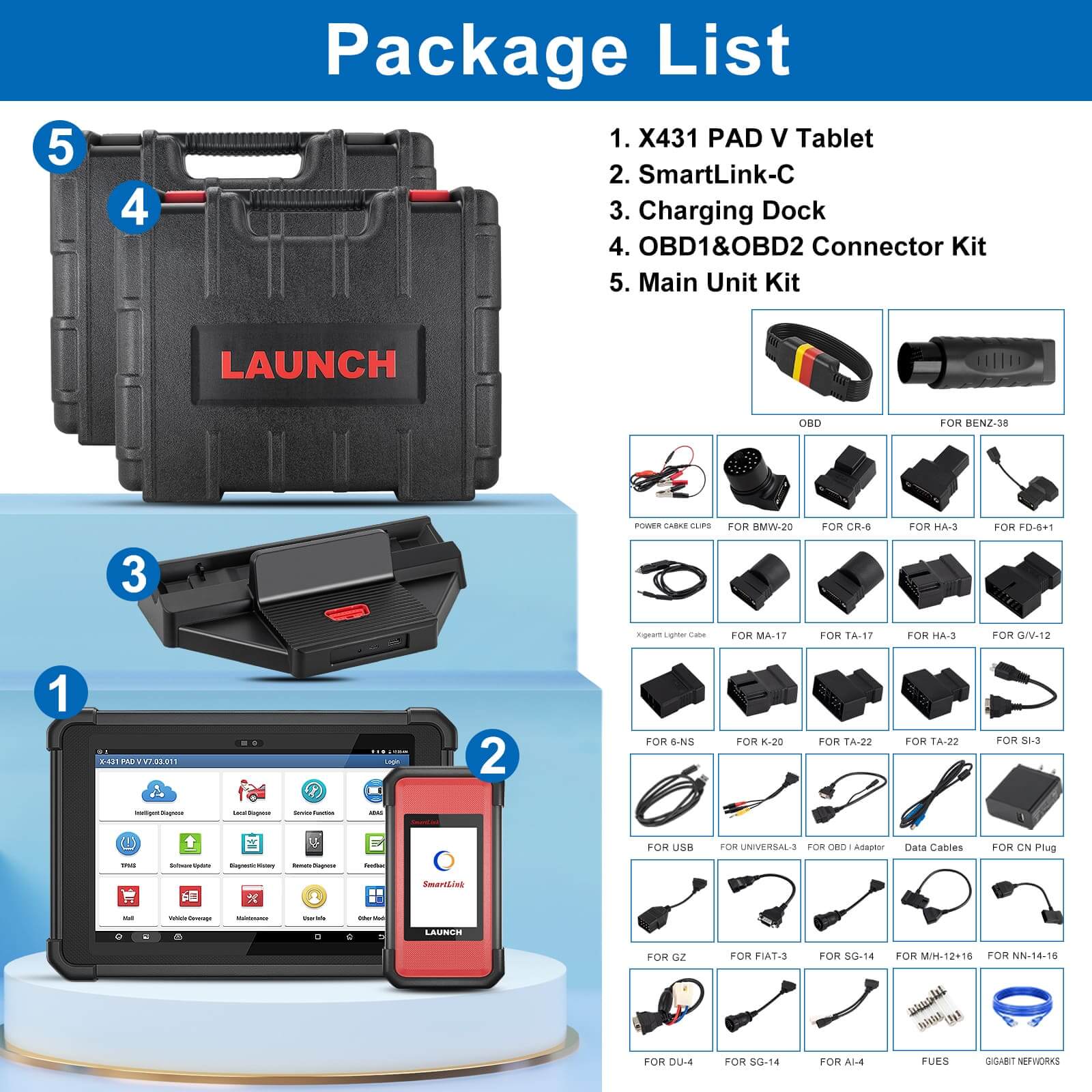

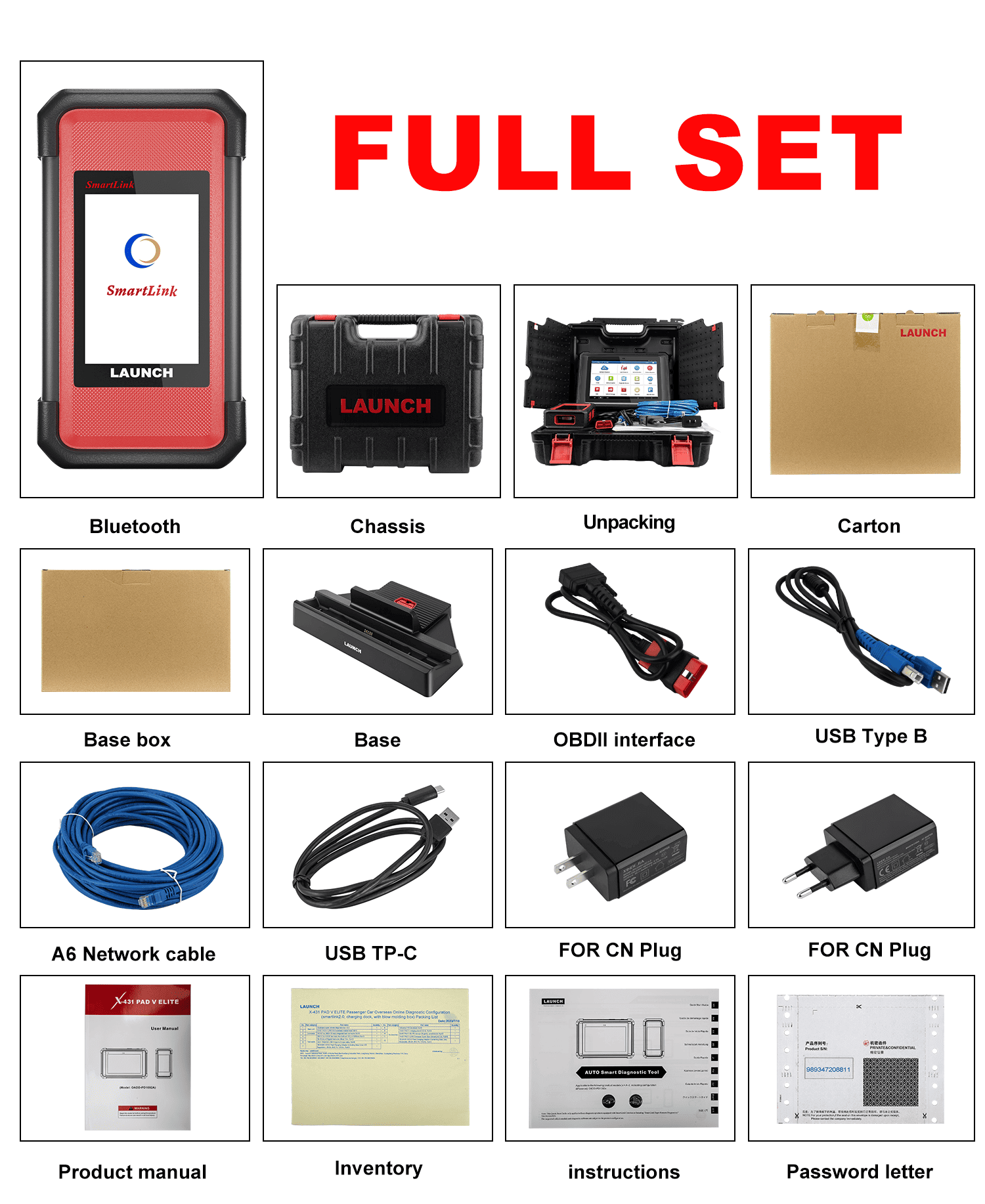

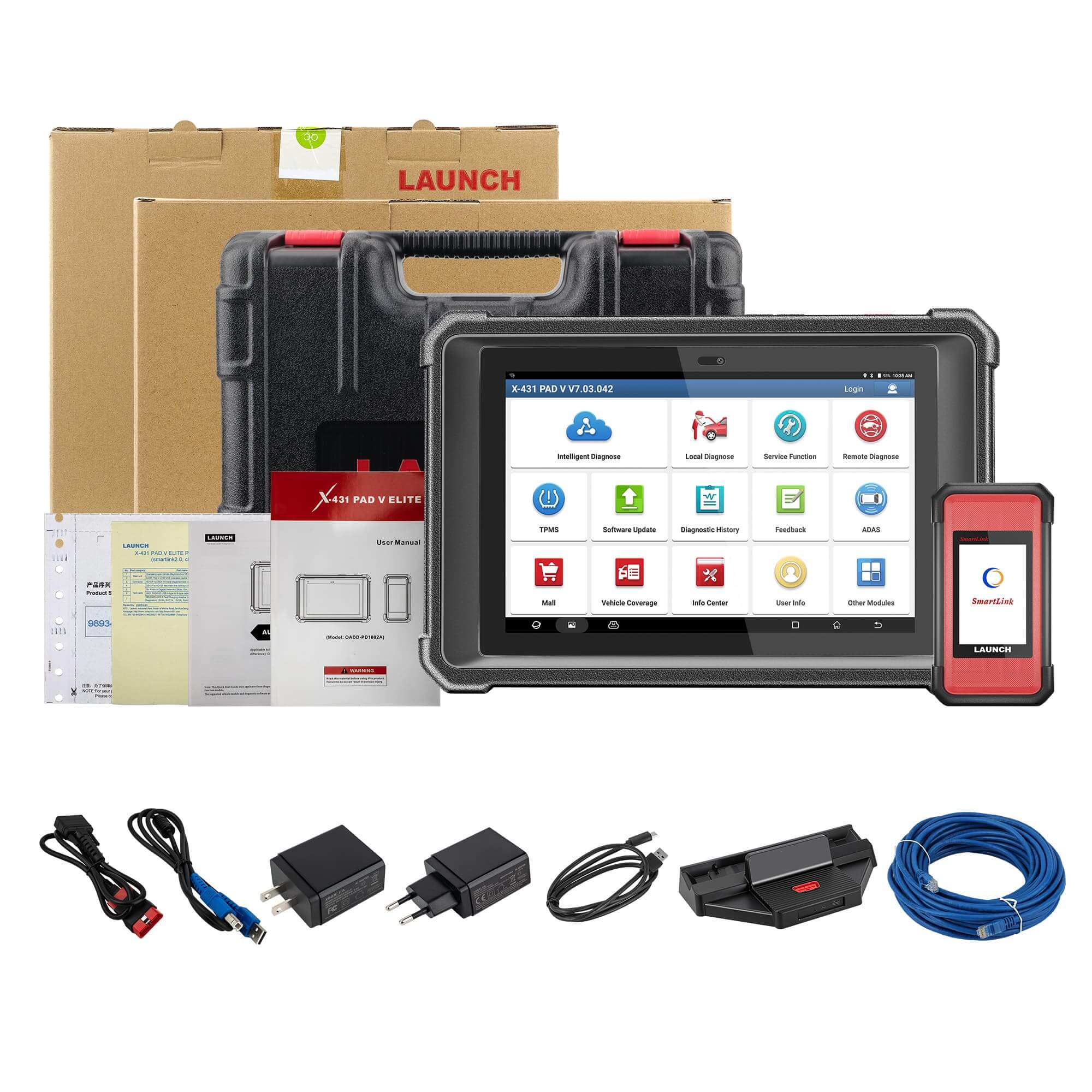

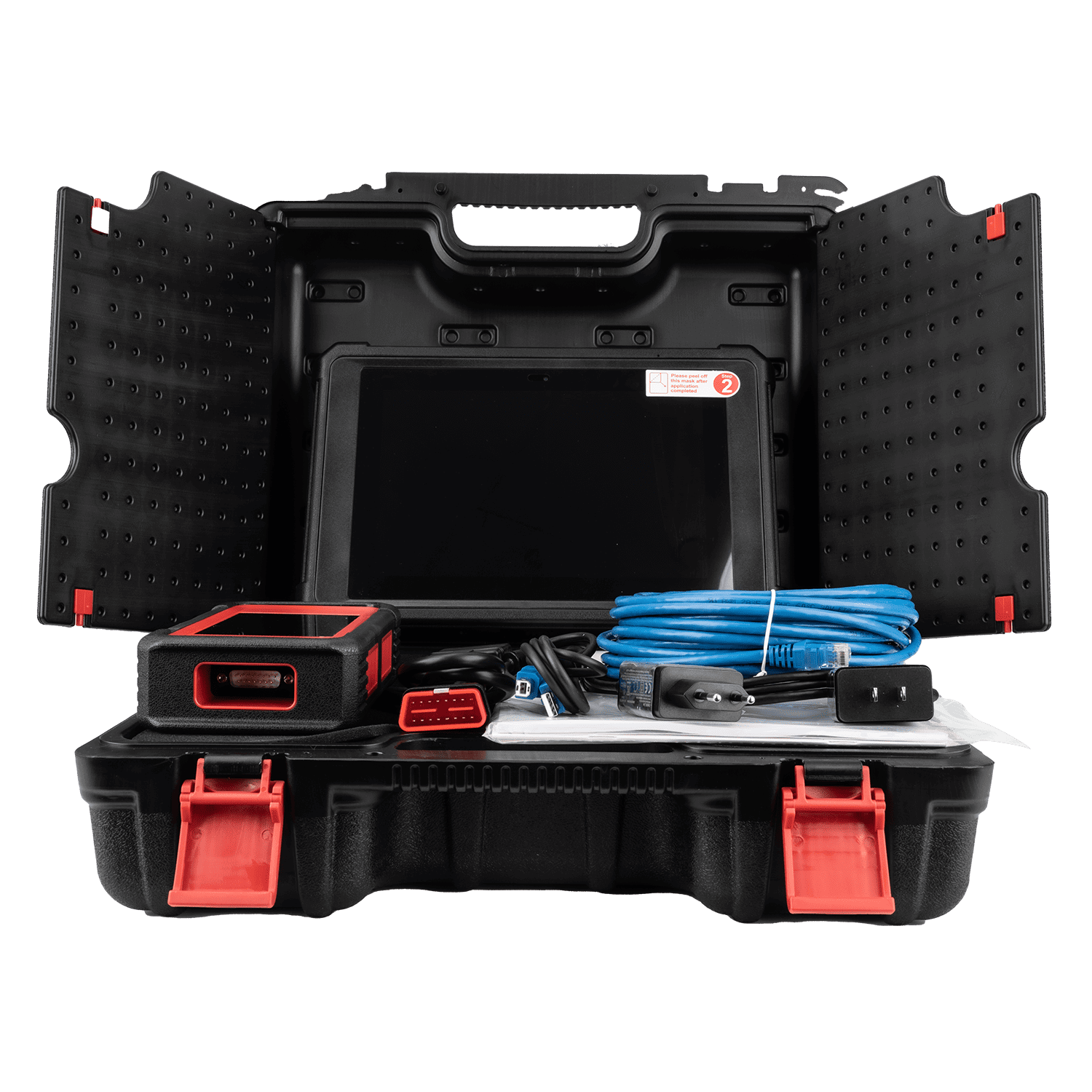

Package List:
1 * LAUNCH Pad V
1 * User Manual
1 * Heavy Truck Module
1 * OBDI Power Cord
1 * OBDI Adapter Cable
1 * Packing box

1 * Base
28 * Connector Tool

Payment & Security


  • Will the unit work on 2014 Infiniti QX70, VIN# JN8CS1MU0EM450620 ?

    Hello, our engineering told me that the LAUNCH X431 PAD V can diagnose your model!

  • Does this work on 2022 Ford F-350 6.7 power stoke diesel , ecm Tcm , instrument cluster programming?

    Sorry, the LAUNCH X431 Pad V does not currently support 2022 Ford models!

  • Can It program honda car with new software

    Sorry sir, X431 Pad V currently does not support Honda programing!
