KINGBOLEN® YA100 OBD2 Scanner Engine Fault Code Reader

Save $3.00
Price:
$14.99 $17.99

Description

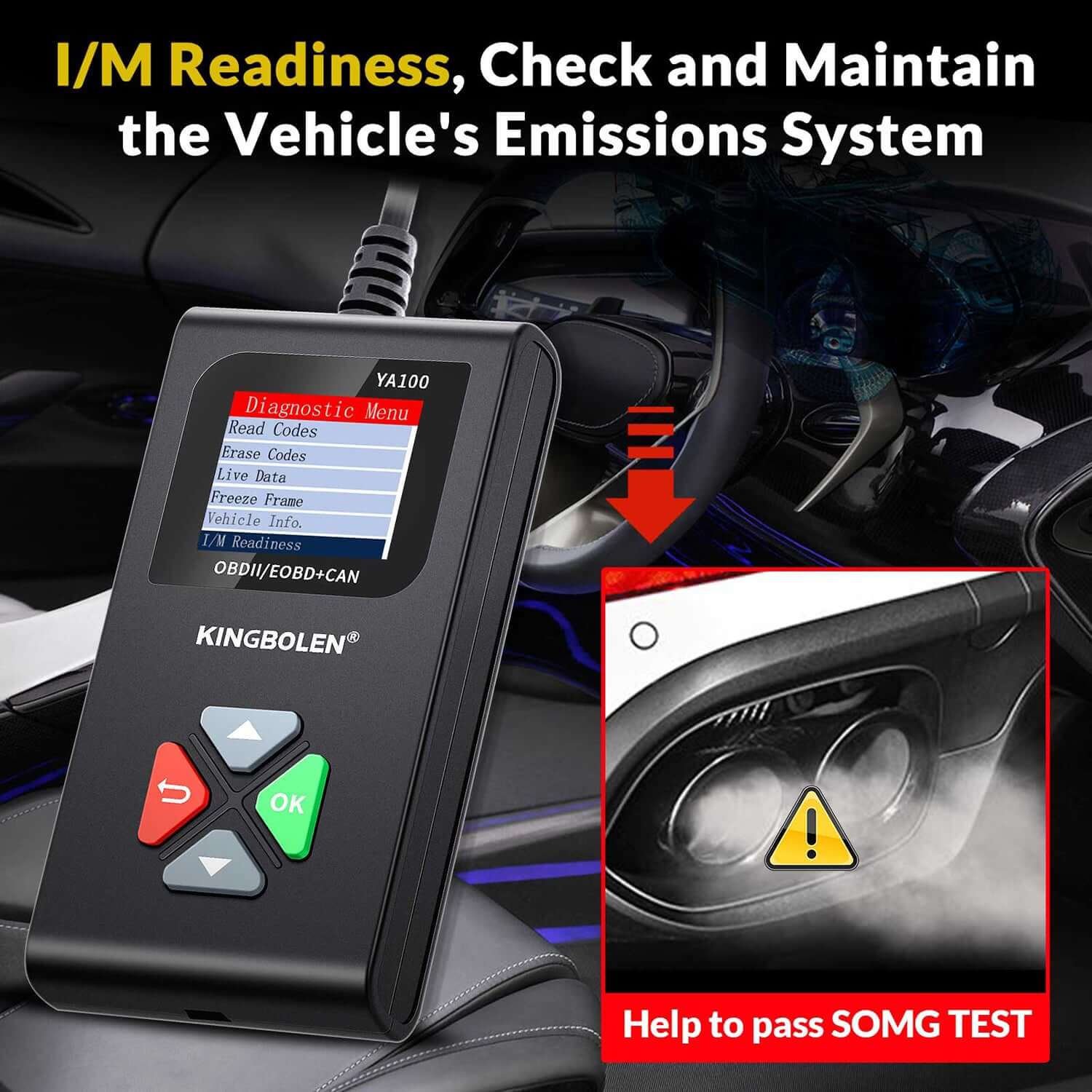

✅All OBD2 Function+9 OBD2 Protocols: KINGBOLEN YA100 OBD2 scanner supports Read/Erase Codes, View Live Data/Freeze Frame, Retrieve I/M readiness Monitor Status, EVAP Test, On-Board Monitoring, O2 Sensor Test and Vehicle Info. Meets 9 OBD2 protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM...KINGBOLEN YA100 OBD2 Scanner

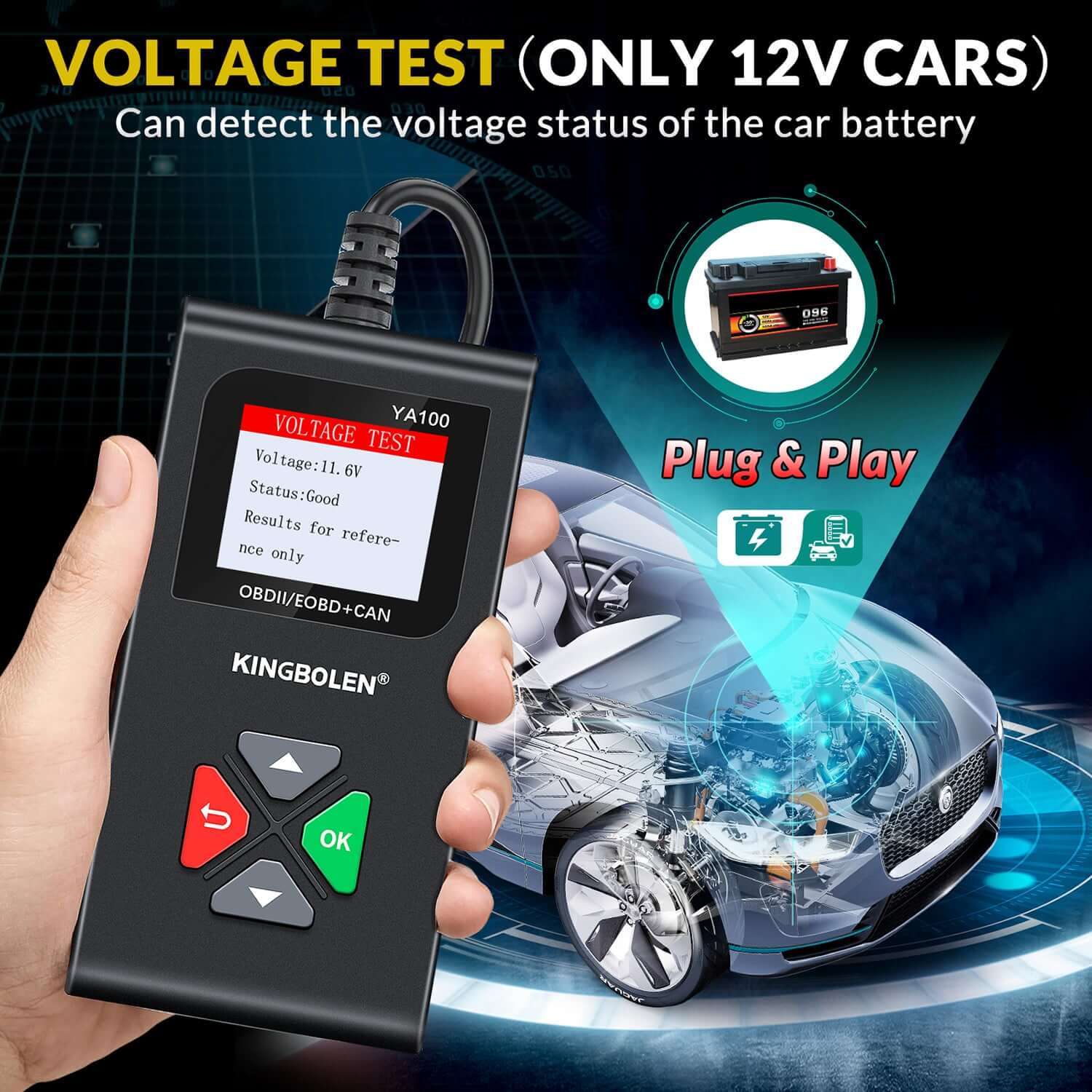

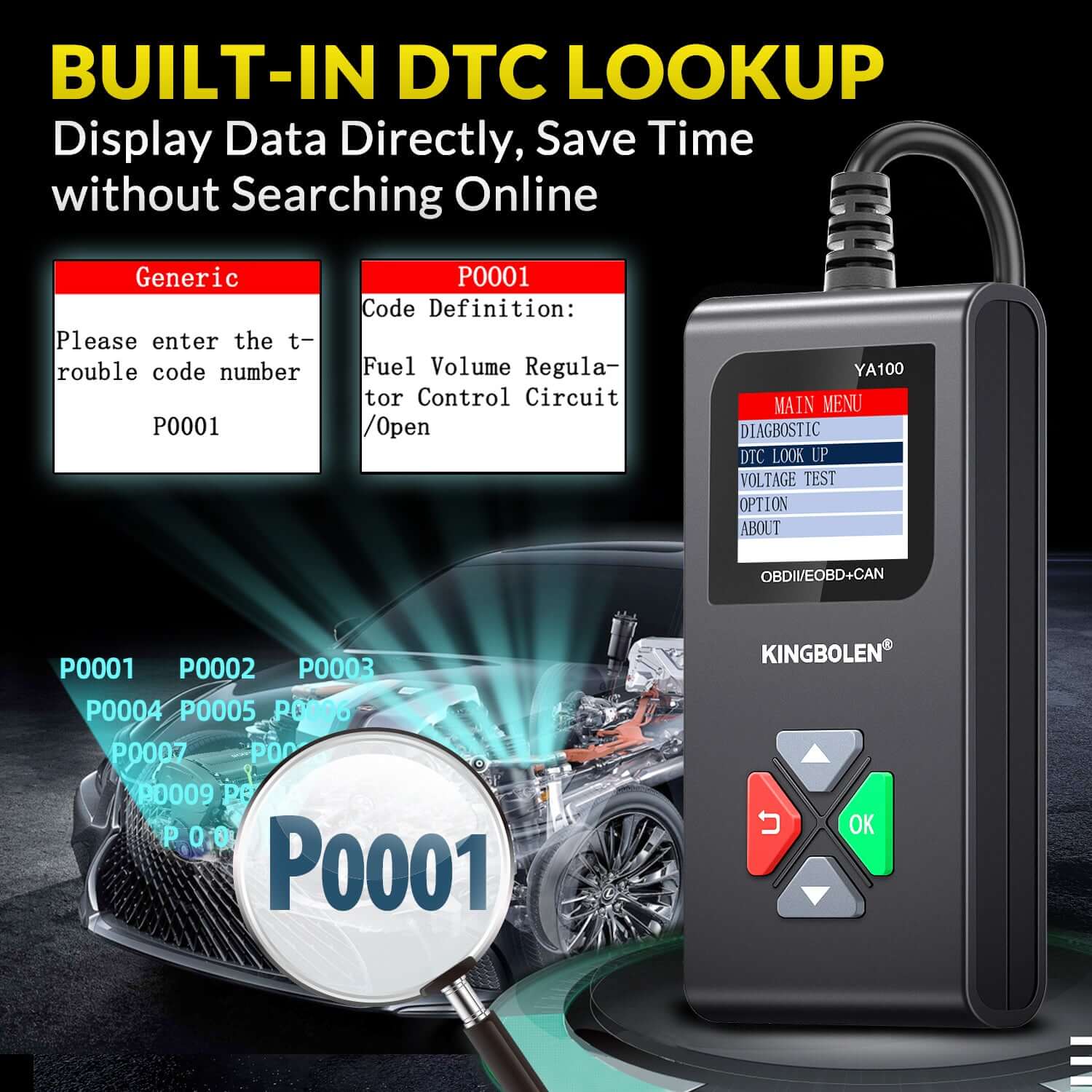

✅DTC Lookup+Voltage Test: Looks up definitions of DTCs stored in the scan tool and shows the possible causes of the DTC. Enter the battery detection, understand the battery status, and avoid the problem that the car cannot be ignited!KINGBOLEN YA100 OBD2 Scanner

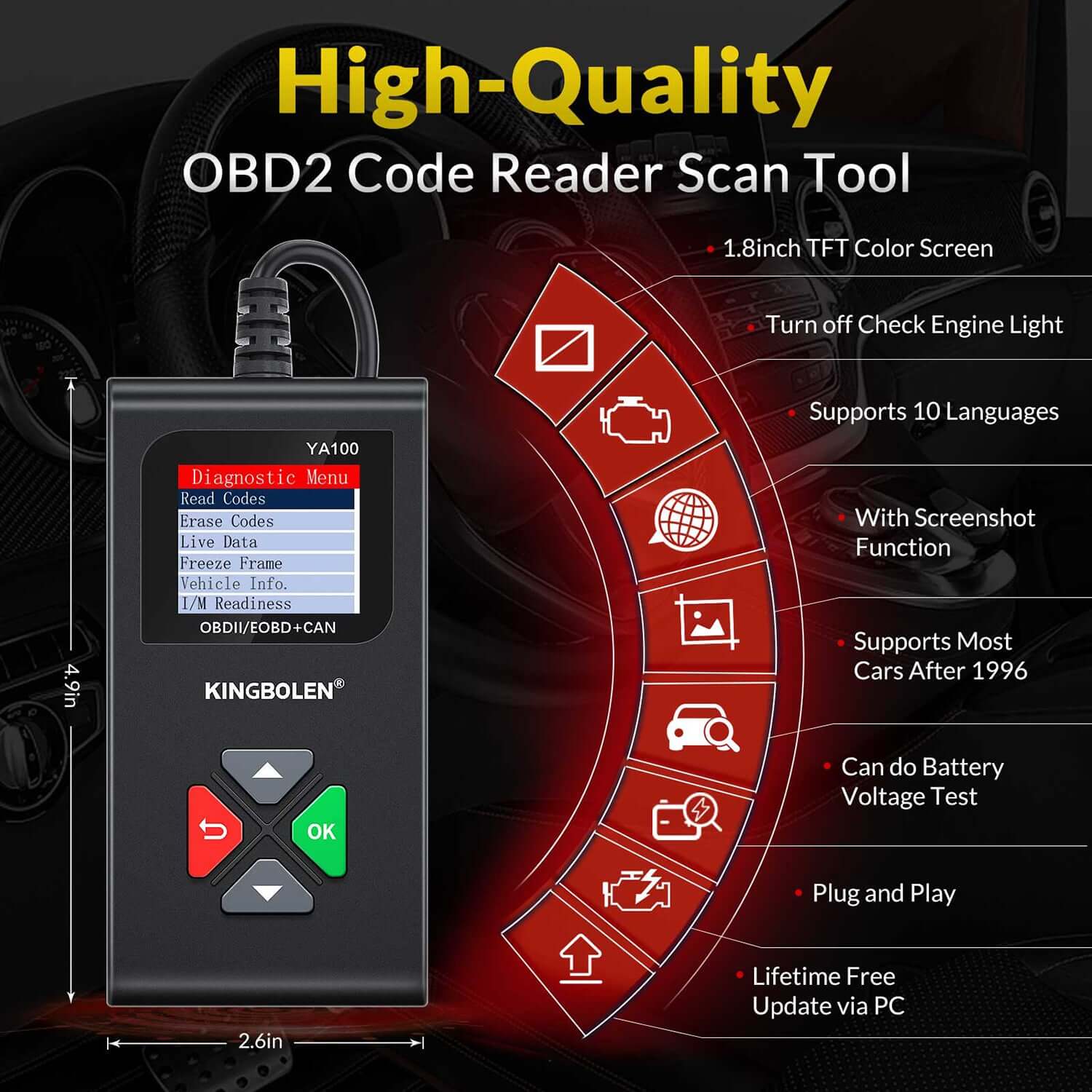

✅Thoughtful Design: Equipped with 128 x 64pixel display with 1.8 inches TFT color display. Key design to help you can more convenient to operate. The hand-held size makes you can take it everywhere. Just plug and play, no need to charge. With the screenshot function, press the up and down keys for 3s-5s to take a screenshot.KINGBOLEN YA100 OBD2 Scanner ✅For OBD2 Vehicles+Lifetime Free Update: Works on most OBD2/EOBD compliant vehicles, like 1996 and newer US cars, 2000 and newer EU cars, and 2008 and newer Asian cars. It can be upgraded simply by connecting to a PC with a USB cable.KINGBOLEN YA100 OBD2 Scanner

The KINGBOLEN YA100 OBD2 scanner meets the following protocols:
① SAE J1850 PWM (41.6 Kbaud)
② SAE J1850 VPW (10.4 Kbaud)
③ ISO 9141-2 (5 baud init, 10.4 Kbaud)
④ ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
⑤ ISO14230-4 KWP (fast init, 10.4 Kbaud)
⑥ ISO15765-4 CAN (11bit ID, 500 Kbaud)
⑦ ISO15765-4 CAN (29bit ID, 500 Kbaud)
⑧ ISO15765-4 CAN (11bit ID, 250 Kbaud)
⑨ ISO15765-4 CAN (29bit ID, 250 Kbaud)


Specification:
Screen Size: 1.8 inches TFT Color Display
Resolution: 128 x 64 pixel
Unit: Metric/Imperial
Working Voltage Range: 8~18V
Dimension: 125mm x 65mm x 22mm
Operating Temperature: 0℃ to 60℃ (32℉ to 140 ℉)
Storage Temperature: -20℃ to 70℃ (-4℉ to 158 ℉)

Video:
Package List:
1 * KINGOLEN YA100 Car Scanner
2 * Quick Start Guide
