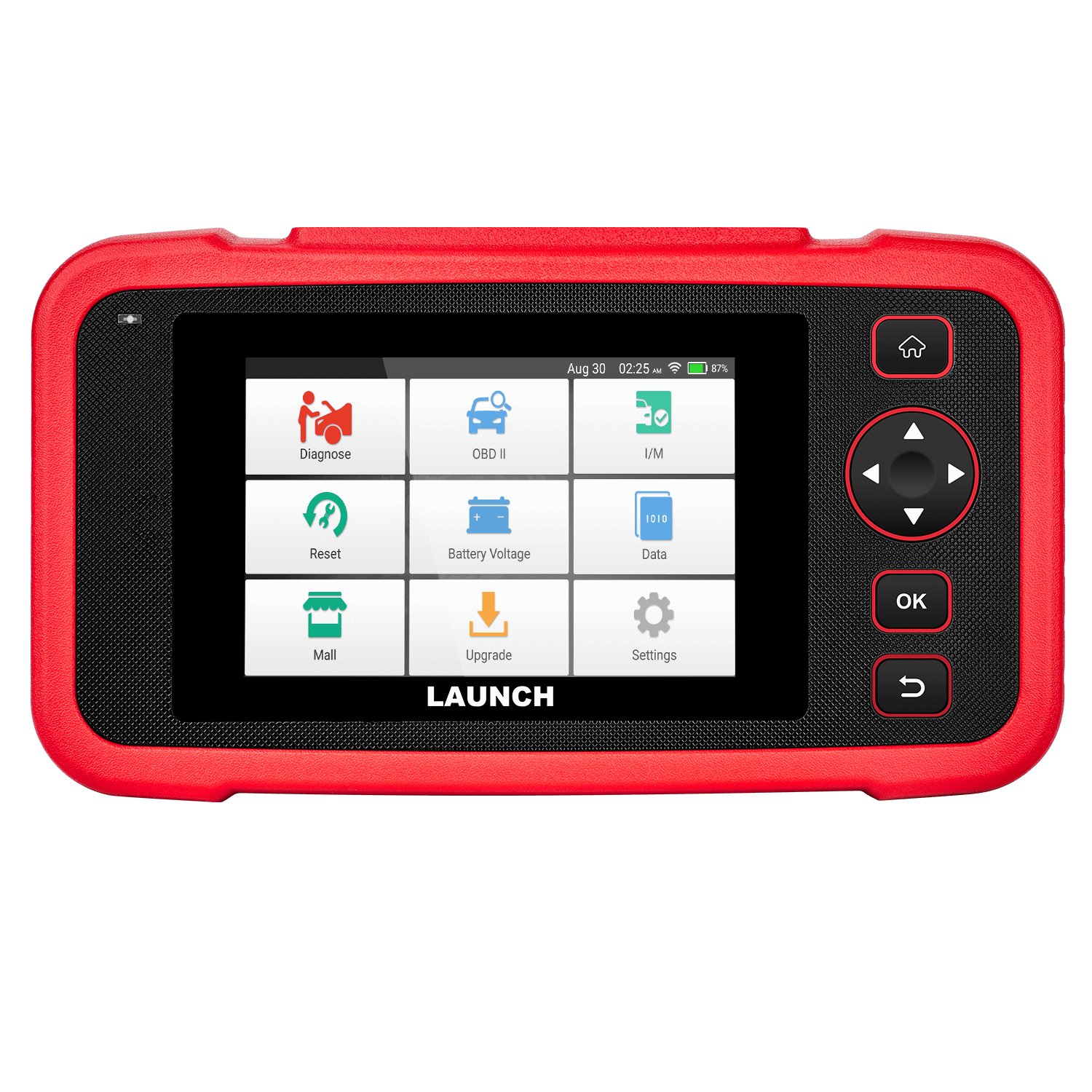

【LAUNCH CRP123I V2.0 OBD2 Scanner Highlights】

√4 Systems Diagnoses: LAUNCH scan tool CRP123 can read/erase codes, view live data stream and turn off the warning lights in the Engine system, Transmission system, ABS and SRS.

√Newly Added 7 Reset Functions:Throttle Adaptation, Oil Reset, SAS Reset,BMS Reset ,EPB Reset, DPF Reset, Injector Coding.

√Full OBDII Functions: The obd2 scanner features all 10 OBDII test modes, such as I/M Readiness, Live Data Stream (in graphic format), O2 Sensor Test, On-board Monitor Test, etc.

√4 in 1 live data graph + Real Time Battery Voltage Graphing +Data Stream Record & Playback

√Auto VIN +One-Click Lifetime Free Update via WiFi + Diagnostic Report + Diagnostic Feedback+Online Feedback+ 5 Years Service

√Wide Compatibilities:The obd2 scanner is compliant with all the OBDII protocols: J1859-41.6, J1850-10.4, ISO9141,

KWP2000 (ISO14230), and CAN (Control Area Network ISO 11898).

√Support More Vehicle Models ( Update car software to 2024 ): 10000+ Vehicle Coverage; 57+ Car Brands Support including cars, SUVs, minvans, 12v light-duty trucks, gasoline cars and diesel cars etc.

√More Longer Battery Life(6100mAh Rechargeable Battery). Avoid frequent charging, lasting nearly 12+ hours continuous use on a single charge .

√Runs Faster, Smoother and More Stable ,5-inch 720P HD TouchScreen; Android 7.0 OS; 6100mAh Battery; Large 16GB Internal Storage ( large internal storage and expandable memory for more vehicle software loaded, diagnostic records etc .)

√Faster update frequency. The LAUNCH CRP123I V2.0 offers faster update frequency. You can be certain that this scanner is from a reliable brand and if you’re faced with a challenge within this period, you will get the much-needed support. !!! NO IP limited

√10 Languages:English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese, Chinese

√2 operating methods: Touchscreen or Button; One-touch Wi-Fi Update Service that is Free to access for a Lifetime

√How to update ?Is it Lifetime Free Update? Yes ! Always free. Connect launch CRP123I V2.0 to the Wifi and one key update, needn't computer, needn't windows systems to update

【LAUNCH CRP123I V2.0 supports Engine/Transmission/ABS/SRS Diagnostics】

√For ABS (Anti-lock Braking System)

By accessing to ABS system to view its Live Data Stream, and retrieving the fault codes, this LAUNCH Creader scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light, and turn the light off.

√For SRS (Airbag)

By detecting every electronic parameters in SRS system to check their health status, this diagnostic tool can address the SRS potential issues timely to ensure your driving safety, and turn off the warning light of Airbag.

√For Engine System

By Reading, Clearing DTCs and viewing Live Data Stream, the scan tool can help you easily pinpoint the cause of the Engine System problem and turn off the warning light related, thus ensuring the engine works properly, and enhancing its performance.

√For Auto Transmission System

By checking the Transmission system, this tool can figure the problem out via reading codes, or check the health status via Live Data viewing, and turn off the warning light, making sure that the right amount of power goes to the wheels to drive at a given speed.

√7 Resest Functions Free to Use for Lifetime

[Oil Lamp Reset function]: this obd2 scanner allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil, clear the oil light.

[Steering Angle Calibration]: this upgrade version crp123e v2.0 code reader helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration, and turn off steering wheel warning light.

[Throttle Position Reset]: Throttle body relearn (aka Idle Relearn ) is the procedure that is required to obtain the correct idle speed after replacing electronic throttle body, disconnecting a battery cable, clearing a check engine light, etc. The symptoms are, idle is too low, too high, or erratic. Sometimes the engine stalls when you stop at the traffic light. And you may see the check engine light come on with the idle speed related trouble codes.

[Electronic brake pad reset]:When the brakes are used to a certain thickness, the brake sensor line will be worn flat. At this time, the brake pad sensing line will send a signal to the car computer, prompting to replace the brake pads. After replacing the brake pads, you need to reset the brakes, otherwise the car will alarm. When do I need to use EPB reset? a) After replacing the brake pads and the brake pad wear sensor wire; b) After the brake pad indicator light comes on; c) After the brake pad sensor circuit short circuit is repaired; d) After replacing the servo motor.

[Injector Coding]:Write the actual code of the injector nozzle or rewrite the code stored in the ECU to correspond to the code of each cylinder nozzle, so as to more accurately control or correct the amount of fuel injected into each cylinder. (2) Usually, after replacing the ECU and injector nozzles, it is necessary to confirm or recode the code for each cylinder nozzle. So that the cylinder can better identify each cylinder nozzle and accurately control the oil injection.

[BMS Reset]:Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc

[DPF Reset]:You will use this function when you encounter these situations, a) Exhaust back pressure sensor replacement; b) Particle trap removal or replacement; c) Fuel additive nozzle removal or replacement; d) Catalytic oxidizer removal or replacement; e) D.PF regeneration fault light illuminated after repair and matching; f) D.PF regeneration control module repair and replacement, etc.It can periodically use combustion oxidation (e.g. high temperature heating combustion, fuel additives or catalysts to reduce the combustion of particulate matter ignition point) to remove the trap performance is always optimal and stable.

【LAUNCH CRP123I V2.0 supports FULL OBD2 Functions Of ENGINE SYSTEM】

1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

【Live Data Stream Analyse in Graph】

√ The scan tool CRP123I V2.0 shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

√ Data recording functionality is amazing, customer can record the live data stream for up to 10, simultaneous, PID's. Once these have been recorded they can be played back in text format and/or graph format. Playback supports two graphs (independent) or 4 PID's graphed (combined). Playback timeline can be scrolled, paused, viewed, etc. There's quite a bit of power in the graphing.

【Diagnostic Reprot Share and Print】

√ Launch CRP123I V2.0 obd2 scanner support auto generate and store vehicle diagnostic report which can let your mechanic know how to do vehicle inspection and maintenance. And the diagnostic report can be shared to email then print.

√ The diagnostic report can help you save time to analyse the problem, it is very great for repair shop , mechanics can print out the vehicle report for customer.

【Wide Vehicle Coverage across the Global ( Support 57+ Makers and 10000+ Car Model )】

for Chevrolet, for Jeep, for JAGUAR, for Vauxhall, for Infiniti, for USAFORD, for HYUNDAI, for TOYOTA, for HONDA, for Tlisuzu, for Gmsa, for SUZUKI, for GM, for FIAT, for SPRINTER, for Euroford, for SMART(SMART), for EOBD2(EOBD2), for SKODA, for Dodge, for SEAT, for DEMO, for SAMSUNG, for DAEWOO, for SAAB, for DACIA, for RENAULT, for CITROEN, for PORSCHE, for PEUGEOT, for OPEL, for Cadillac, for for Nissan, for Buick, for BUGATTI, for MITSUBISHI, for BMW, for Mini, for BENZ, for MAZDA, for AUTOSEARCH, for Lincoln, for AUSTFORD, for Lexus, for LANDROVER, for Alfa Romeo, for Lancia, for ACURA, for KIA, for Abarth, for JPISUZU, for etc.

【CRP123I V2.0 Specifications】

Screen	5 inch
Voltage input	9-18V
Working Temperature	-10℃ ~ 55℃
Storage Temperature	-20℃ ~ 70℃
Dimension	8.97”（L）×4.92”（W）×1.36”（H）
Unit Weight	＜565g
