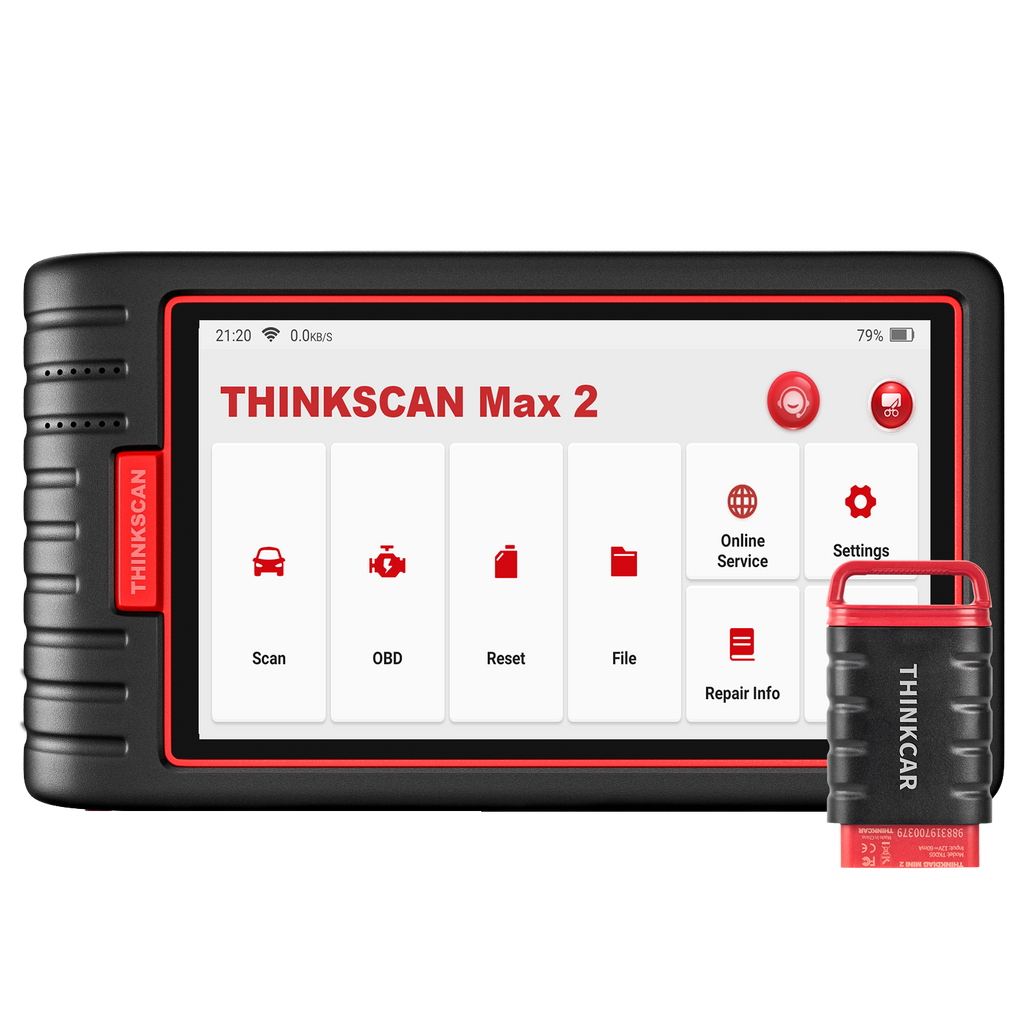

THINKCAR® Thinkscan Max 2 CAN-FD All Systems OBD2 Scanner

Save 27%

Price:
Sale price$329.00 Regular price$449.00
Compare In comparison
✅All Systems Diagnostic: Applicable to perform OE-level diagnostics on all systems, such as Engine, ABS, SRS, AT, AFS, LF, DOOR, SAS, EPB, A/C, EES, IMMO, TPMS, Gateway, Steering, Rain, Brake, Fuel, Central Locking, Electric Windows, etc.THINKCAR Thinkscan Max 2 CAN-FD OBD2 Scanner
✅Added CAN-FD Protocol: THINKCAR Thinkscan Max2 scanner is compatible with CAN-FD protocol and supports GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.THINKCAR Thinkscan Max 2 All Systems CAN-FD OBD2 Scanner

✅Technical Support: Android 10.0 System, 5.99-inch touchscreen, 3150mAh battery, with 3 data stream display modes available, Auto VIN, automatically generates a diagnosis report, DTC Library. You can change it to English, Portuguese, French, Russian, Spanish, Japanese, Korean, German, Traditional Chinese, Hungarian, Polish, Italian, Greek, Arabic, and Slovak. THINKCAR Thinkscan Max 2 CAN-FD OBD2 Scanner

Note: If you want to get the advanced functions, such as ECU Coding, Active Test, or added special functions, you need to pay a subscription, which is valid for 12 months.(A car software costs $49.95 per year)

What is the difference between the THINKCAR all system diagnostic scanners?

THINKCAR THINKSCAN Max2 OBD2 scanner meets the following protocols:
-ISO 14230-4 (KWP2000)
-ISO 11898-1:2015(CAN-FD)
-ISO 15765-4 (CAN)
-ISO 9141-2 (ISO)
-ISO 14229 (UDS)
-SAEJ 1850 (VPW & PWM)

The following vehicle models meet -ISO 11898-1:2015(CAN-FD) protocol:
2021 Chevrolet Tracker/Suburban/Tahoe;
2020-2021 Chevrolet Onix 1.0L(L4F/L4G/LIJ/LIF)/Onix 1.2L(LIF);
2021 Cadillac Escalade/Escalade ESV;
2021 GMC YUKON/YUKON XL;
2020 Chevrolet Tracker

Specification:
Thinkscan Max 2 Host Computer
Screen Size: 5.99”
Operation System: Android 10.0
Battery Capacity: 3150mAh/3.7V
ROM: 2GB
RAM: 32GB
Resolution: 720*1440 Pixel
Working Voltage: 5V
Working Current:≤2.5A
Dimension: 120.5*65*29mm
Working Temperature: -10℃ to 50℃ (14℉ to 122 ℉)
Storage Temperature: -20℃ to 60℃ (-4℉ to 140 ℉)

THINKTOOL VCI:
Working Voltage: 12V
Working Current: ≤60mA
Working Temperature: -10℃ to 50℃ (14℉ to 122 ℉)
Storage Temperature: -20℃ to 60℃ (-4℉ to 140 ℉)
1 * Thinkscan Max 2 Scanner
1 * THINKTOOL VCI
1 * Charging Cable
1 * Power Adapter
1 * Manual
1 * Carry Bag
